Managing Connections

Connections store reusable configuration for external systems like databases, APIs, and cloud storage.

Connections List
Connections List - Manage all external system connections

Why Use Connections

Creating a Connection

  1. Go to Data Hub > Connections
  2. Click Create Connection
  3. Select the connection type
  4. Configure the connection settings
  5. Click Save

Code-First Ownership

Connections loaded from deployed plugin configuration show a Code-first badge in the list and a read-only banner on the detail page. Their code, type, and configuration must be changed in the deployed definition, then applied by restarting the API application. The backend rejects update and delete mutations for these connections even if a client bypasses the Dashboard.

Removing the deployed definition releases the existing row to Dashboard ownership on the next API startup; it does not delete the connection. Review all pipeline references and test the released connection before editing or deleting it.

Connection Configuration

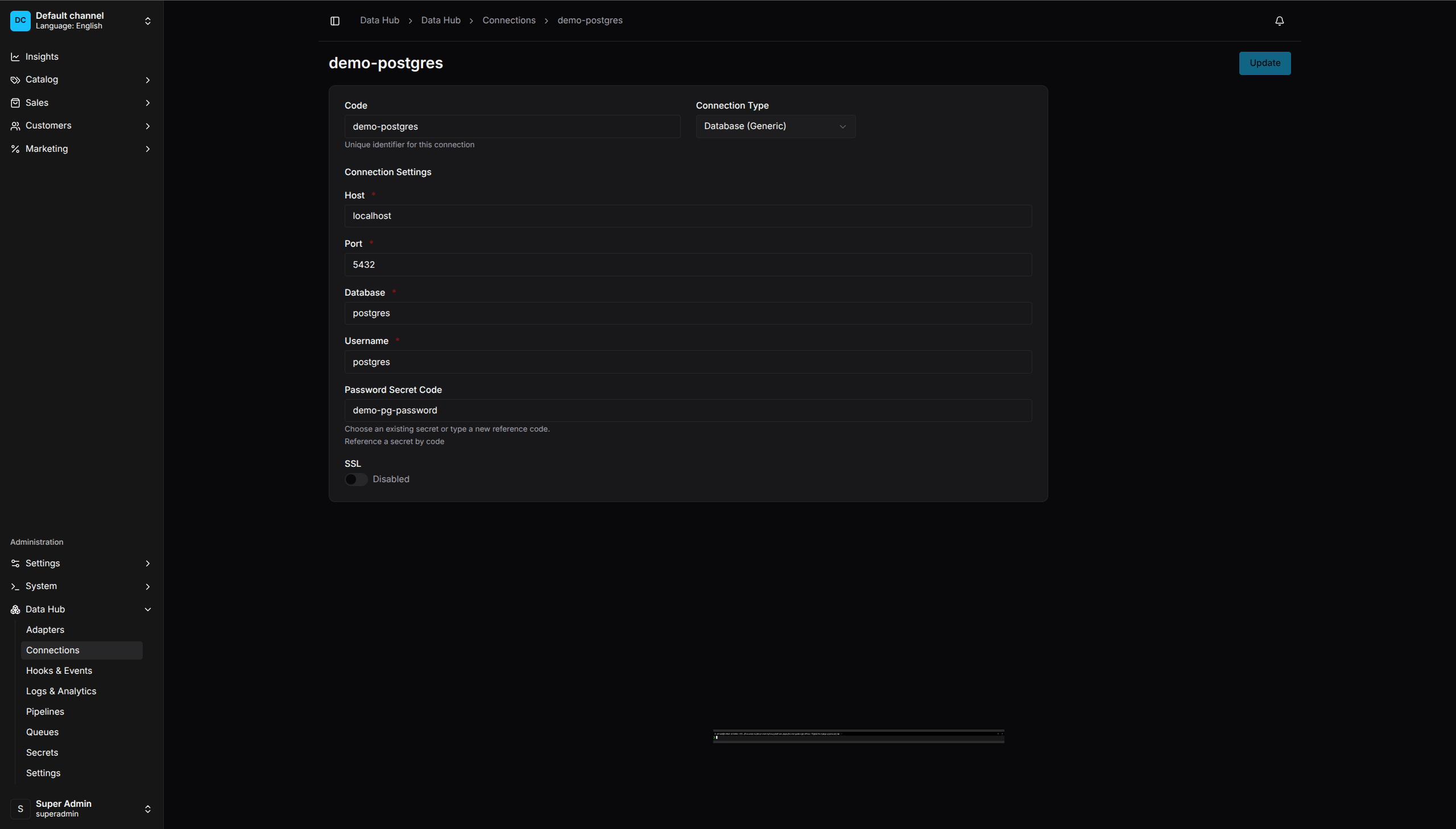

Connection Configuration - Multiple connection types supported

Connection Types

Supported canonical types are HTTP, REST, GRAPHQL, POSTGRES, MYSQL, S3, FTP, SFTP, RABBITMQ, SQS, REDIS, and CUSTOM. Generic or vendor types outside this list are rejected. SQLite remains available only as a code-first database extractor configuration.

HTTP / REST API

Connect to REST APIs:

Field Description
Base URL API base URL (e.g., https://api.example.com)
Timeout Request timeout in milliseconds
Headers Default headers for all requests
Auth Type None, Bearer Token, Basic Auth, API Key
Secret Code Reference to secret for credentials

The base URL must use HTTP or HTTPS and must not contain a username or password. Authenticated connections require a base URL because it defines the origin to which credentials may be sent. Default headers accept only non-sensitive request headers; configure authorization, cookies, tokens, API keys, and signatures through Secret Code-backed authentication instead.

Basic authentication can use either a literal username or a Username Secret Code. The password always uses a Secret Code. API key header names cannot override request-routing or framing headers such as Host, Content-Length, Connection, or Upgrade.

Example:

Code: supplier-api
Type: HTTP
Base URL: https://api.supplier.com/v1
Timeout: 30000
Auth Type: Bearer Token
Secret Code: supplier-api-token

PostgreSQL

Connect to PostgreSQL databases:

Field Description
Host Database server hostname
Port Server port (default: 5432)
Database Database name
Username Database user
Password Secret Reference to password secret
SSL Enable SSL connection

Example:

Code: erp-db
Type: POSTGRES
Host: db.example.com
Port: 5432
Database: erp
Username: vendure_reader
Password Secret: erp-db-password
SSL: true

MySQL

Connect to MySQL databases:

Field Description
Host Database server hostname
Port Server port (default: 3306)
Database Database name
Username Database user
Password Secret Reference to password secret

Amazon S3

Connect to S3 or compatible storage (MinIO, DigitalOcean Spaces):

Field Description
Region AWS region (e.g., us-east-1)
Bucket Default bucket name
Access Key ID Secret Reference to access key secret
Secret Access Key Secret Reference to secret key
Endpoint Custom endpoint for S3-compatible services

Example for MinIO:

Code: local-storage
Type: S3
Region: us-east-1
Bucket: imports
Endpoint: http://minio:9000
Access Key ID Secret: minio-access-key
Secret Access Key Secret: minio-secret-key

FTP / SFTP

Connect to file servers:

Field Description
Host Server hostname
Port Server port (FTP: 21, SFTP: 22)
Protocol FTP or SFTP
Username Login username
Password Secret Reference to password secret
Private Key Secret For SFTP key-based auth
Host Key Fingerprint Secret (hostKeyFingerprintSecretCode) Trusted OpenSSH SHA256:<base64> SFTP server fingerprint; required in production
Base Path Default directory

SFTP host-key fingerprints use OpenSSH SHA256:<base64> format and are required in production. Validate network access and credentials from the environment that runs Vendure before enabling a consuming pipeline; the current dashboard does not expose a connection-test mutation.

Custom

Custom connections store a JSON object whose structure is defined by the integration that consumes it. The dashboard validates and preserves nested JSON objects rather than storing JSON text. Credential-like properties must use environment references such as ${ERP_PASSWORD}; plaintext credential values and URLs containing embedded usernames or passwords are rejected.

Using Connections in Pipelines

Reference a connection by its code:

In Visual Editor

  1. Add an Extract or Export step
  2. Select the adapter (e.g., Database)
  3. Choose the connection from the dropdown
  4. Configure step-specific settings

In DSL

.extract('fetch-products', {
    adapterCode: 'httpApi',
    connectionCode: 'erp-api',  // Connection code
    url: '/products',
})

Environment Variables

Connection settings can reference environment variables:

Host: ${DB_HOST}
Database: ${DB_NAME}

Variables are resolved at runtime for string-valued fields. Typed number and boolean fields must be stored with their native JSON types, so configure ports as numbers rather than ${...} placeholders.

Editing Connections

  1. Go to Data Hub > Connections
  2. Click on a connection
  3. Modify settings
  4. Click Save

Changing configuration within the same connection type affects all pipelines using it. A connection referenced by a published pipeline cannot change its code or type until those pipelines are updated and republished. A pinned nonterminal run snapshot also blocks code/type changes because queued, running, paused, and cancellation-pending runs still resolve the referenced connection.

Deleting Connections

  1. Go to Data Hub > Connections
  2. Click the menu (⋮) on a connection
  3. Select Delete
  4. Confirm deletion

Connections referenced by a published pipeline or pinned nonterminal run snapshot cannot be renamed, changed to a different type, or deleted. Wait for the run to finish or cancel it before removing the connection. The delete mutation returns NOT_DELETED when a tracked reference blocks it.

Best Practices

Naming

Security

Testing
